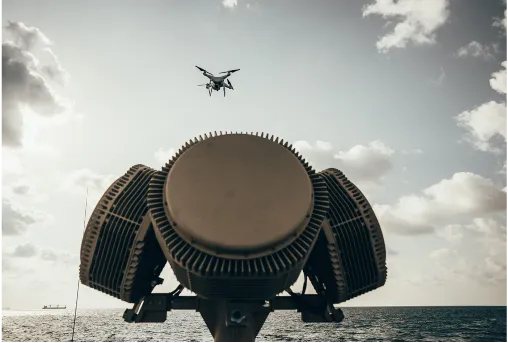

MHRAir defense radar
The MHR is a modern multi-mission ground-based radar designed to perform Counter-UAS, VSHORAD, Counter-Rocket, Artillery and Mortar (C-RAM) and Hemispheric Surveillance missions.
The radar system uses software-defined pulse-Doppler technology and operates in the S-band. It integrates an AESA antenna and a GaN amplifier with advanced 4D processing, providing superior performance in handling interference and minimizing multipath effects.
Share
Product information
• Extended fire control tracking accuracy, multi-tasking and multi-functionality through advanced antenna topology.
• At the heart of the mobile GBAD system.
• Realistic product installation (ASP) image when mounted on a vehicle or tactical ship.
• Exceptional performance against low-altitude targets.
• Multi-mission – “one radar does it all”.
• MOSA –Modular Open System Architecture, easy integration with all types of defense systems in hardware and software.
• Autonomous, software-defined operation through advanced algorithms and signal processing.
• Processing of hundreds of targets through Track While Search (TWS) and Review.
• Enhanced fast mass scanning range, full hemispherical (360°) search & track with four radars.
• In-depth 4D analysis of signal reception and other target features.
• SWaP-C superiority, cost reasonable.
Main features
- AESA (Active Electronically Scanned Array) Antenna: Advanced antenna technology enables fast, accurate target detection and tracking.
- Wide Threat Speed Range Support: Handles targets moving at different speeds.
- Coexistence Capability: Operates effectively in environments with multiple radar systems or other devices on the same frequency.
- Multipath Reduction and Interference Handling: Uses advanced antenna structures to minimize negative effects from reflections and interference.
- ECCM Resistance: Protects the radar from electronic countermeasures from the enemy.
- Cyber Security Certification: Ensures information security and the ability to resist cyber threats.
- Integrated IFF (Identify Friend or Foe): Supports the distinction between friendly and enemy targets.
Specifications
Vùng phủ sóng: Radar đơn: 90Az, 90 El. Lắp đặt 4 radar: góc nhìn toàn cảnh.
Giao diện: Ethernet, I/0 Discrete
Giao thức: ASTERIX, Customer-tailored
Nguồn vào: 28 VDC (per MIL-STD-1275E)
Công suất tiêu thụ: trung bình 320 W
Kích thước: Đường kính 50cm, Dày 20cm.
Trọng lượng: <30kg
Nhiệt độ hoạt động: -40C to +55C
Làm mát: làm mát thụ động.
